Pressure tubing lines for Combidyn
Designed to accurately measure physiological pressure and to intravenously administer medications. Easy handling due to flexible tubing material, an optimized inner diameter and colour coded tubing lines with Luer lock-fittings.
- Different lengths: 20 - 240 cm
- Pressure stability up to 8 bar
- Two different materials:
PVC:
Tubing diameter 1,5 x 2,7 mm.
Luer lock-fittings with special screw thread; male / female; ABS.
Polyethylen:
Tubing diameter 1,0 x 2,0 mm.
Minimized dead space.
Luer lock-fittings with special screw thread; male / female.

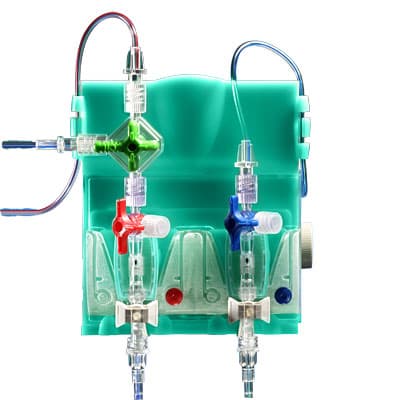

Attachment plate for Combitrans
Attachment plates for Combitrans pressure transducers with a wide application variety.
- Available as double and quadruple attachment plate.
- Easy and safe transportation by "Click and Go" mechanism.
- Cable protection by cable garages.
- Mountable in horizontal and vertical position.
- Robust and dishwasher safe up to 65°C.
Monitoring cable and cable management
For the connection of Combitrans disposable transducers, Angiotrans manifolds and Combidyn reusable transducers to the CF patient monitors with internal adjustment to the monitor's specifications.
Single cable
- Safe and compact
- Easy cleaning
- Simplification of cable management
- Available in double, triple or quadruple format
- Compatible with all CF monitors
Cable management
- Safe and compact
- Easy cleaning
- Simplification of cable management
- Available in double, triple or quadruple format
- Compatible with all CF monitors
- CE certificate
