Double-lumen High Flow catheter set for catheterization of the vena cava according to the Seldinger method with the possibility of ECG based Central Venous Catheter tip placement and position control
Set consists of:
Valve needle (V) or Seldinger needle (S) (depending on set configuration)
Kink-proof guide wire with flexible J-tip

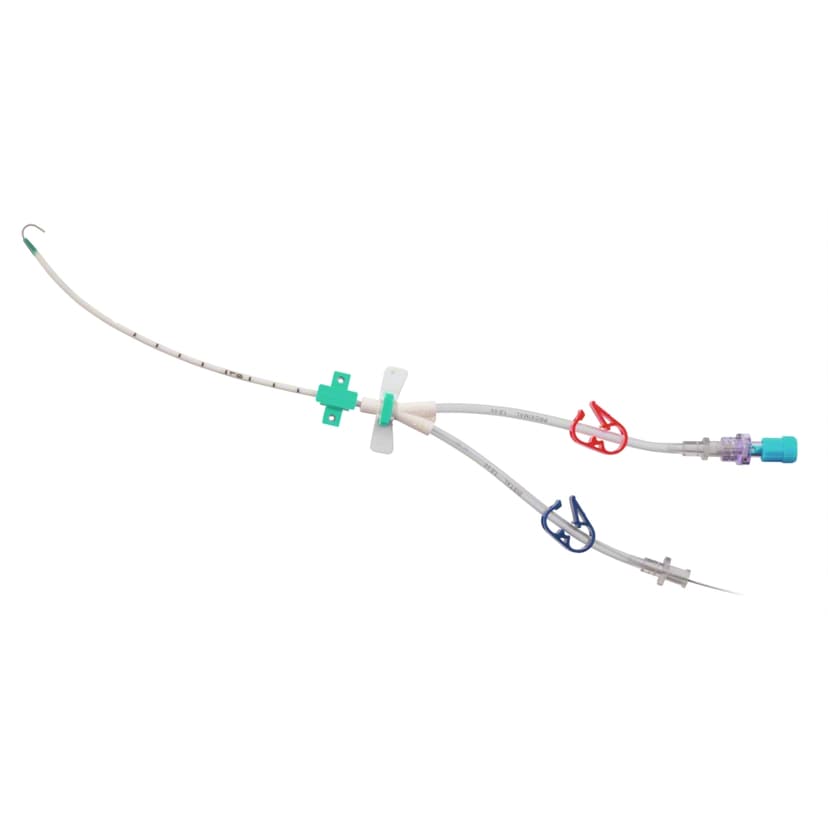

double-lumen High Flow catheter: Soft catheter tip / X-ray detectable, opaque / Two lumen (size depending on set configuration): 7F: distal = 14 G; proximal = 18 G / 9F: distal = 13 G; proximal = 13 G / 12F: distal = 11 G; proximal = 11 G / Length markings / Color-coded Luer-Lock hubs / Fixation wings at the channel junction for securing the catheter
Movable fixation or stationary fixation with fixation wings for catheter fixation at the puncture site (depending on set configuration)
