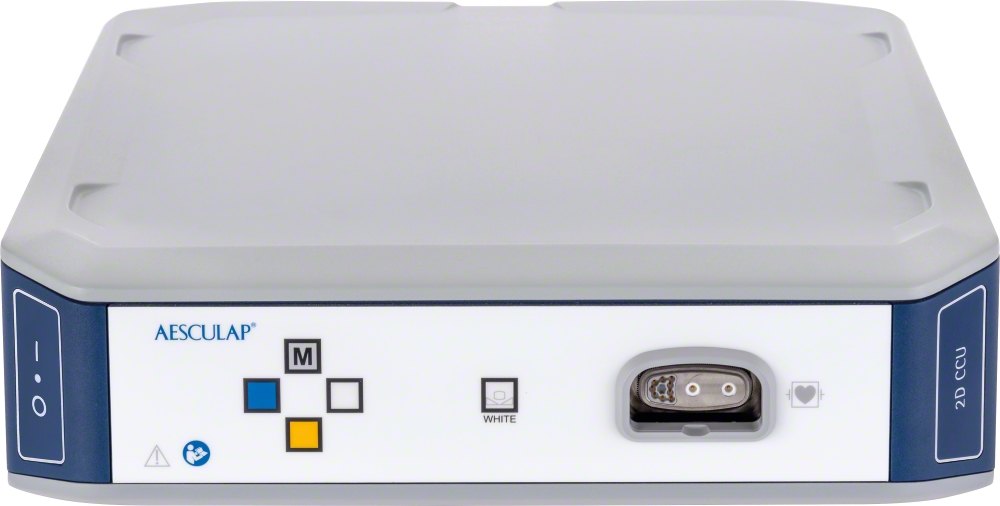

2D CAMERA PLATFORM | B. Braun
- Product Search Type
- Camerai Control Unit
- Aesculap Product Groups
- Endoscopic Technology
- Product family
- Equipment
- Video signal output
- 3G-SDI 1080p, HD-SDI 1080i, 720p (60 Hz), DVI-D 1080p (60 Hz)
- Horizontal resolution (Lines)
- 1920
- Scan mode
- progressive
- Modes
- 5 presettings
- Button functions
- individually adjustable
- Colour bars
- Yes
- Weight CCU
- 7.0 kg
- On-screen display
- Yes
- Power supply
- 100-240 V AC, 50/60Hz
- Maximum power consumption
- 60.0 VA
- to be used with (code)
- PV482, PV481, PV485
- Discipline
- Urology, Arthroscopy, Cardiac / Thoracic Surgery
- Protection level acc EN_606011
- CF
- Safety class acc to EN 60601-1
- I
- Tested acc to norm
- EN 60601-1-2, EN 60601-1
- Product contains Latex
- No
- Sterility
- non-sterile
- Disposable / Reusable
- reusable
