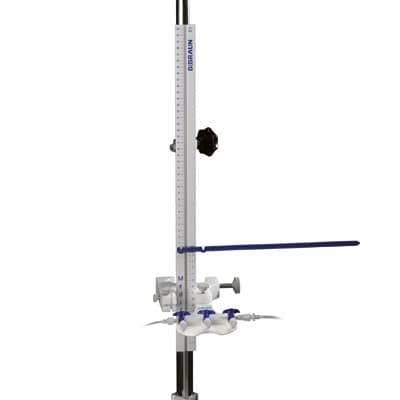

Medifix® manometer scale
Infusion systems for measurement of the Central Venous Pressure (CVP)
Graduation from +35 to -15 cm H
2
O
Good readability for the measured value because of magnifying effect
Zero-postion indicator movable to either side
Break-proof plastic
Reusable
With two universal fixation clamps
Accessories
Discofix® Combi-Holder, REF 4086007
