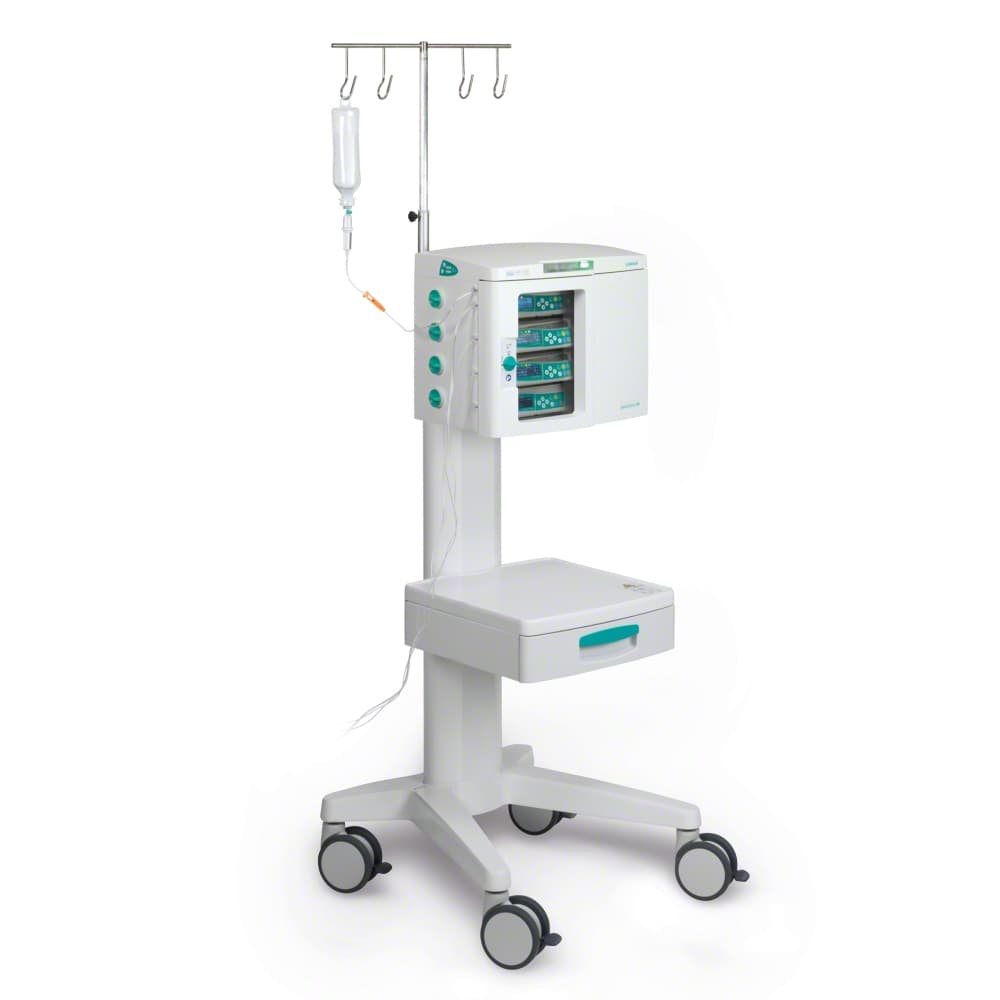

SpaceStation MRI shields the pumps against magnetic fields and thereby ensures interference-free images.
Now, when Space infusion pumps are used, special treatments like PCA and TCI can be given during MRI examinations.
Performance data:
- Shielded aluminum housing (RAL 9002)
- Dimensions: HxWxD: 375 mm x 450 mm x 311 mm without trolley
- Dimensions: HxWxD: 1350 mm x 656 mm x 600 mm when mounted on trolley
- Weight: 11 kg without pumps
- Can be used with up to four Space infusion pumps Perfusor® or Infusomat®
- Can optionally be operated with SpaceComfor data communication with Space Online or a PDMS*
- SpaceStation MRI can be battery-operated for up to 6 hours
- Trolley can be extended to for assembly with a MRI-compatible patient monitor
TeslaSpy®:
- Continually monitors magnetic field strength
- Triggers an optical and acoustic alarm when maximum allowable magnetic field strength is exceeded
- Long-life battery operation for up to 15 months
- Real-Time clock
- Results are stored whenever maximum allowable field strength is exceeded
- Service technicians can retrieve data from non-volatile memory
User benefits:
- Very low added investment required
- No unnecessary or time consuming upgrading to special infusion pumps
- Standard infusion lines can be used
- Safe operation thanks to the integrated "navigation assistant" TeslaSpy®
- Operation with up to four infusion pumps and infusion syringe pumps possible
- Extended therapeutic options with PCA
- Data communication is an integrateable option
