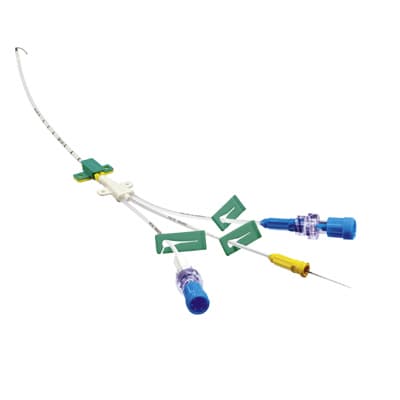

Antimicrobially modified triple lumen catheter sets for catheterization of the vena cava according to the Seldinger method with the possibility of intra-atrial ECG lead
Set consists of:
Valve needle = V
Kink-proof guide wire with flexible J-tip
Omnifix® Luer-Lock syringe, 5 ml
Cutfix® scalpel
Dilator
Catheter
Made of PUR
Soft catheter tip
X-ray detectable, opaque
Three lumens: distal = 16 G; middle = 18 G; proximal= 18 G
With Safsite® valves
Length markings for accurate catheter placement
Color-coded Luer-Lock fittings
Fixation wing at the channel junction for securing of the catheter
Protruding, adjustable fixation wing for stitch fixation at the puncture site (only 20 cm and 30 cm length)
