Electrode Set

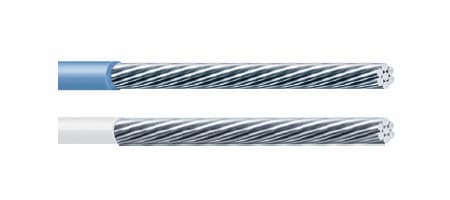

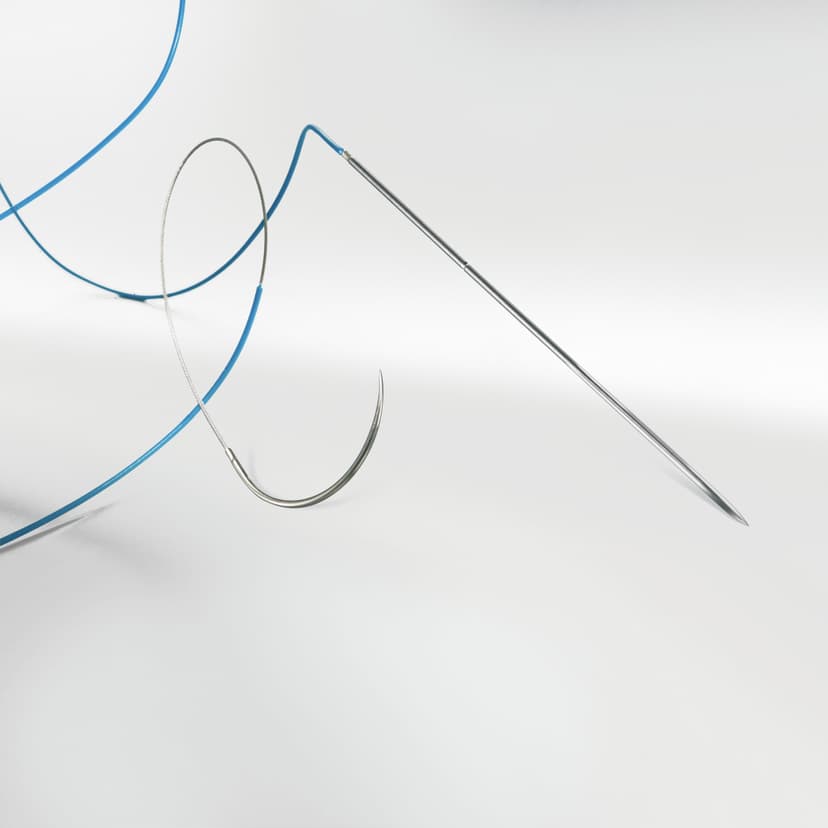

The Electrode set is a unipolar temporary cardiac pacing wire used to treat arrhytmias during and after open heart surgery. It consists of a twisted stainless steel, multistrand wire partially insuflated with a sheath of blue Polyethylene.
