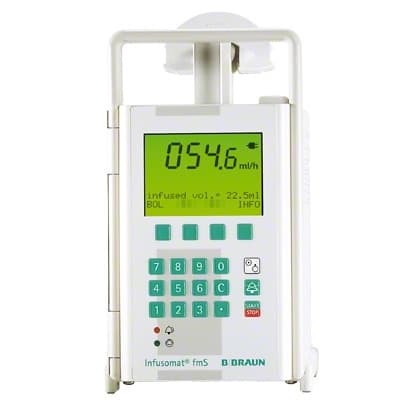

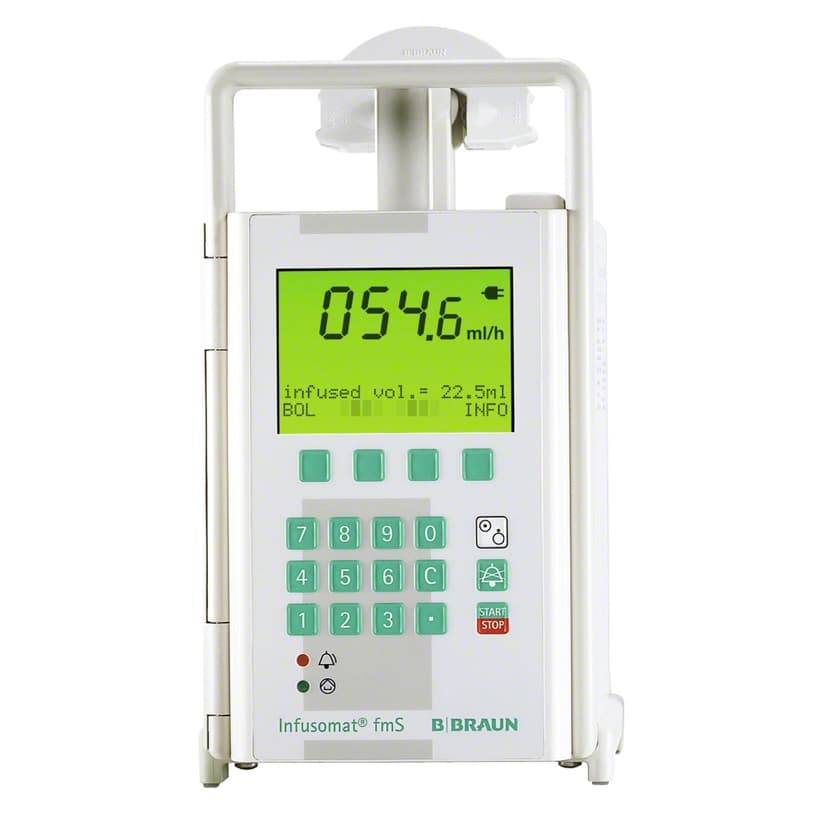

Volumetric infusion pump for use in anesthesia, intensive care medicine and on wards
High operating convenience
Direct input or automatic calculation of the delivery rates (volume over time)
Large display to provide the most important parameters at one glance
Ergonomic user interface for easy adjustments
Broad performance spectrum
Dose rate mode: Offers the automatic calculation of the delivery rate in ml/h based on the entry of drug concentration in conjunction with the desired dose rate (e.g.: ml/kg/min)
Piggyback mode
Standby function
Compatible with the B. Braun fm system
Safety features
Flow clamp prevents "free flow" when the pump door is opened
Air detector minimizes the risk of air infusion
Adjustable pressure limits result in shorter time to alarm in the event of an occlusion
Visual and acoustic alarms
Original Infusomat®-Tubing ensures high delivery accuracy and consistency and, most important, trouble-free functioning over long periods of time
