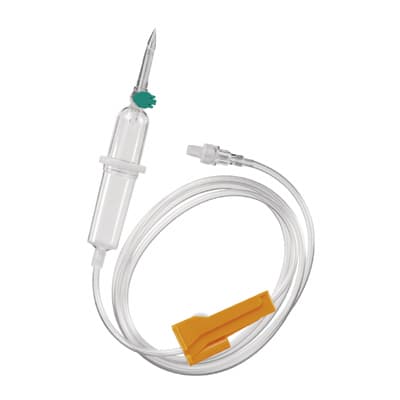

Intrafix® Air P
Universal IV administation sets with automatic air vent for pressure and gravity infusion
Sharp piercing spike
Easy penetration, simple piercing even of suspended containers
Empties leaving no residue
Automatic, bacteria-proof venting
Convenient drip chamber design with highly transparent upper part
Upper drip-chamber part ideal for attachment of an infusion pump drip sensor
Extended, detached drip element provides even drop formation; 20 drops = 1 ml ± 0.1 ml (aqua dist.)
Flexible pumping chamber with high fluid level
Rapid and easy adjustment of fluid level
15 µm filter protects against larger particles
Roller clamp in DIN safety color "orange" with piercing-spike covering for safe disposal
Pressure resistant to 4.5 bar: suitable for use with infusion pumps using 3 x 4.1 mm tubing (list available on request)
Luer Lock fitting
